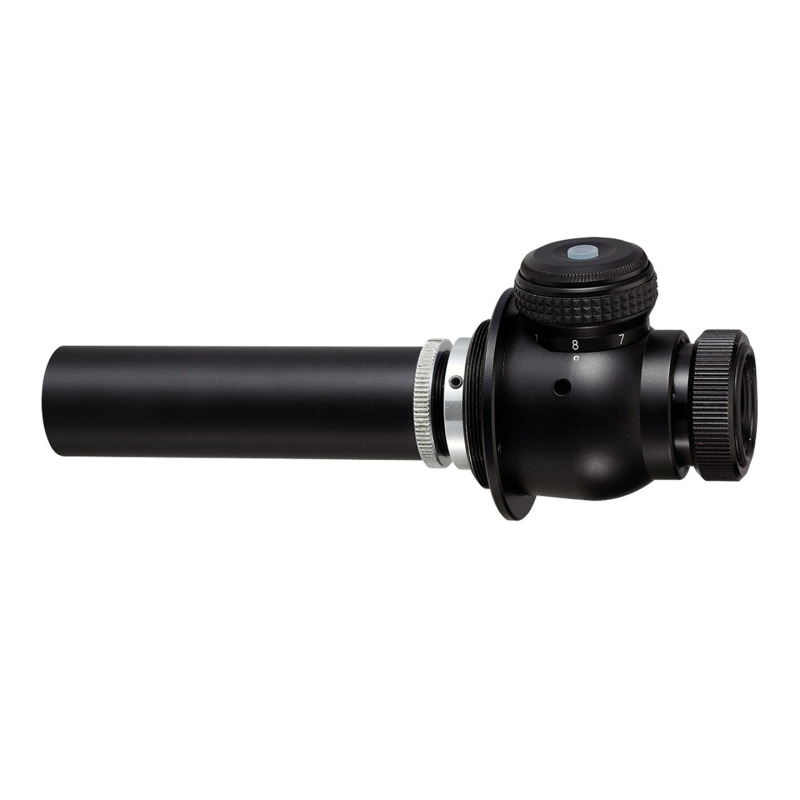

Vixen Polar Finder PF-L II

Vixen Polar Finder PF-L II for AP & SX Mounts

The Vixen Polar Finder PF-L II for AP & SX mounts impresses with simple direct adjustment via reference stars and is suitable for both the northern and southern hemispheres

• Easy direct adjustment thanks to reference stars
• Red illumination with variable intensity
• Suitable for the northern and southern hemispheres.
• Dimensions: 47 x 55 x 127 mm / Weight: 155 g
• For AP, SX, AXJ, and AXD mounts
• Automatic illumination shut-off

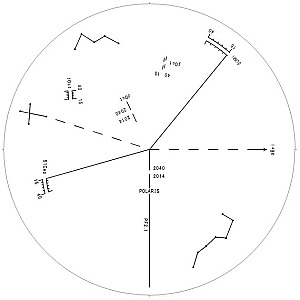

A brand new type of polar finder with a simple alignment method. The Vixen PF-L II polar finder for AP & SX mounts displays the polar star and 2 other stars (Delta UMi and 51 Cep) in real position. By rotating the polar finder, you adjust these stars according to the reticle, and the position of the North Pole is correctly displayed. You just need to adjust the polar star to the year mark.
Therefore, there is no need for complicated alignment using the date and time. For the southern hemisphere, simply use the trapezium (Sigma, Chi, Tau, and Upsilon Octantis) of the Octans constellation and align the reticle with the stars of the trapezium.
The polar finder features built-in illumination that can be adjusted to multiple levels and automatically turns off after 2 minutes.
The PFL-II has improved edge sharpness compared to its predecessor.

FEATURES

• Illumination: dark field illumination with automatic shut-off
• Power supply: CR2032 button cell
• Accuracy: ≤ 3 angular minutes
• Dimensions: 47 x 55 x 127 mm
• Weight: 155 g
• Compatibility: AP, SX, AXJ, AXD mount

PACKAGE CONTENTS

• Polar Finder PF-L II
• Allen key
• CR2032 battery
