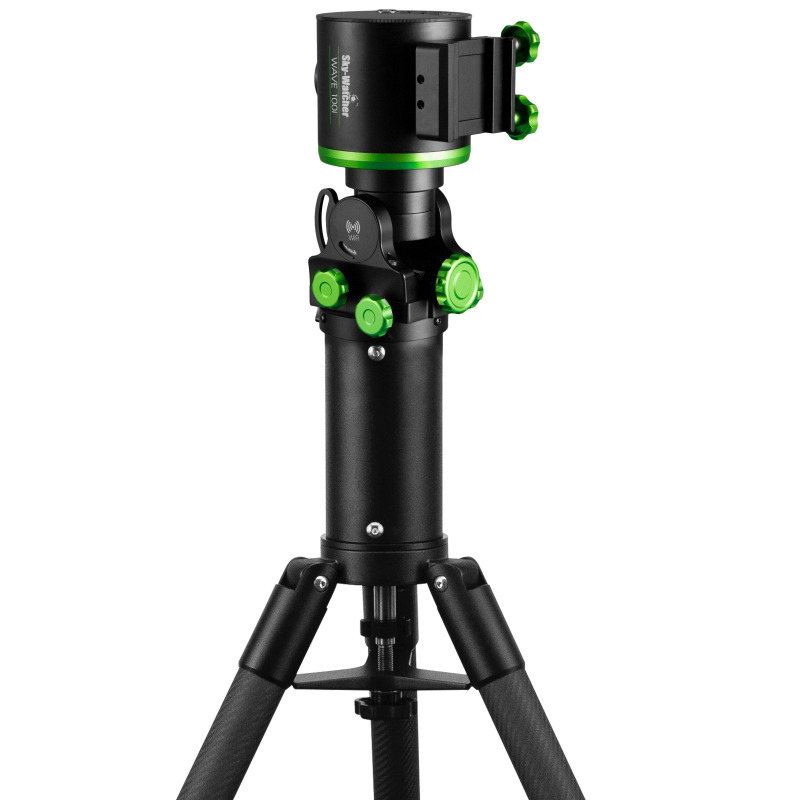

Sky-Watcher | WAVE-100i Strainwave with tripod

The telescope mount:

The WAVE mounts from Sky-Watcher utilize the strain wave design with its high torque and compact construction, providing precision and high performance in an affordable and portable package. With exclusive features not found on any other strain wave mount, the new WAVE series is a serious upgrade and improvement over the already immensely popular astronomical mounts from Sky-Watcher.

The Sky-Watcher WAVE-100i is based on a strain wave or harmonic gear design. This drive gear design offers a number of advantages, including high-precision tracking with minimal backlash for long exposure photography and a compact design with a remarkable payload-to-weight ratio that allows for the use of different devices while being easily transportable.

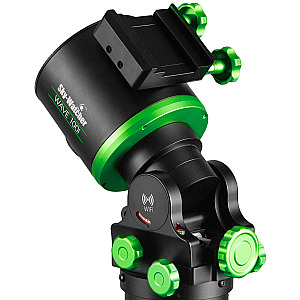

The WAVE-100i offers a payload capacity of 10 kg (15 kg with the optional counterweight kit) while being incredibly compact and lightweight. The WAVE mounts from Sky-Watcher also feature EQ and AZ tracking modes with RA and DEC output positions, dual-adjustable saddles, a latitude range of 0 to 90º, Wi-Fi and Bluetooth functionality, an RA brake when power is cut, as well as a backlit latitude indicator and bubble level in red to greatly simplify your setup routine.

*Please note that the extension and telescope shown in the product photos are not included in the delivery*.

Specifications and delivery contents:

• Equatorial and Alt-AZ mode

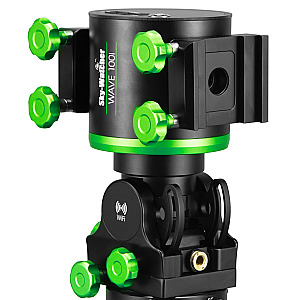

• Dual clamp 45mm/75mm & additional clamp 45mm/75mm.
• Mount weight: 4.3 kg
• Payload (without counterweight) 10 kg
• Payload (with optional counterweight): 15 kg
• The counterweight kit, extension, and tripod are available separately (not included in the delivery).
• Drive mode: stepper motor belt-driven with harmonic reducer
• Harmonic RA specification: 17-100. DEC harmonic spec: 14-100
• Maximum speed: 2400x (10º/sec)
• Transmission reduction ratio: 300:1 (both axes)
• Latitude adjustment from 0° to 90°

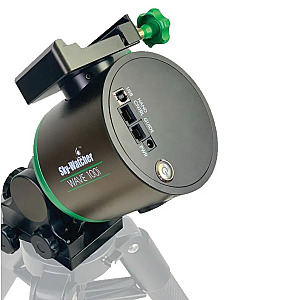

• Connections: USB-B, autoguider, SynScan Handset & power socket
• RA lock function (to facilitate the installation of the counterweight kit)
• Controllable via Wi-Fi, Bluetooth, or optionally with the SynScan Handset (not included)
• Compatible with the Sky-Watcher SynScan PRO app for Windows, iOS, and Android devices.
• Also compatible with Stellarium, SkySafari & Cartes du Ciel and third-party drivers or software like ASCOM or INDI.
• Power supply: 12V 2A DC
• RA brake function with motor off
• RA and DEC home position and limit
• Comfortable red LED lighting for the latitude scale and bubble level
• Precision CNC machining
• Transport case with foam
• Carbon tripod

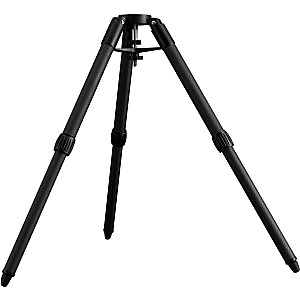

Tripod specifications:

• 3/8" screw connection
• Compatible with Sky-Watcher Wave-100i & Wave-150i mounting heads, directly on the head or using extension 20986
• Material: carbon fiber
• Full extension height: 747 mm

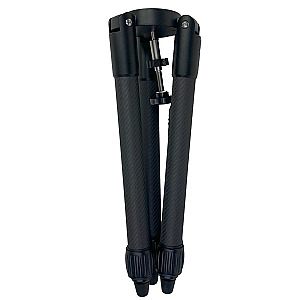

• Folded height: 500 mm
• Weight: 2400 g
• Load capacity: 20 kg
• Outer diameter of tripod legs: 40mm/35mm
